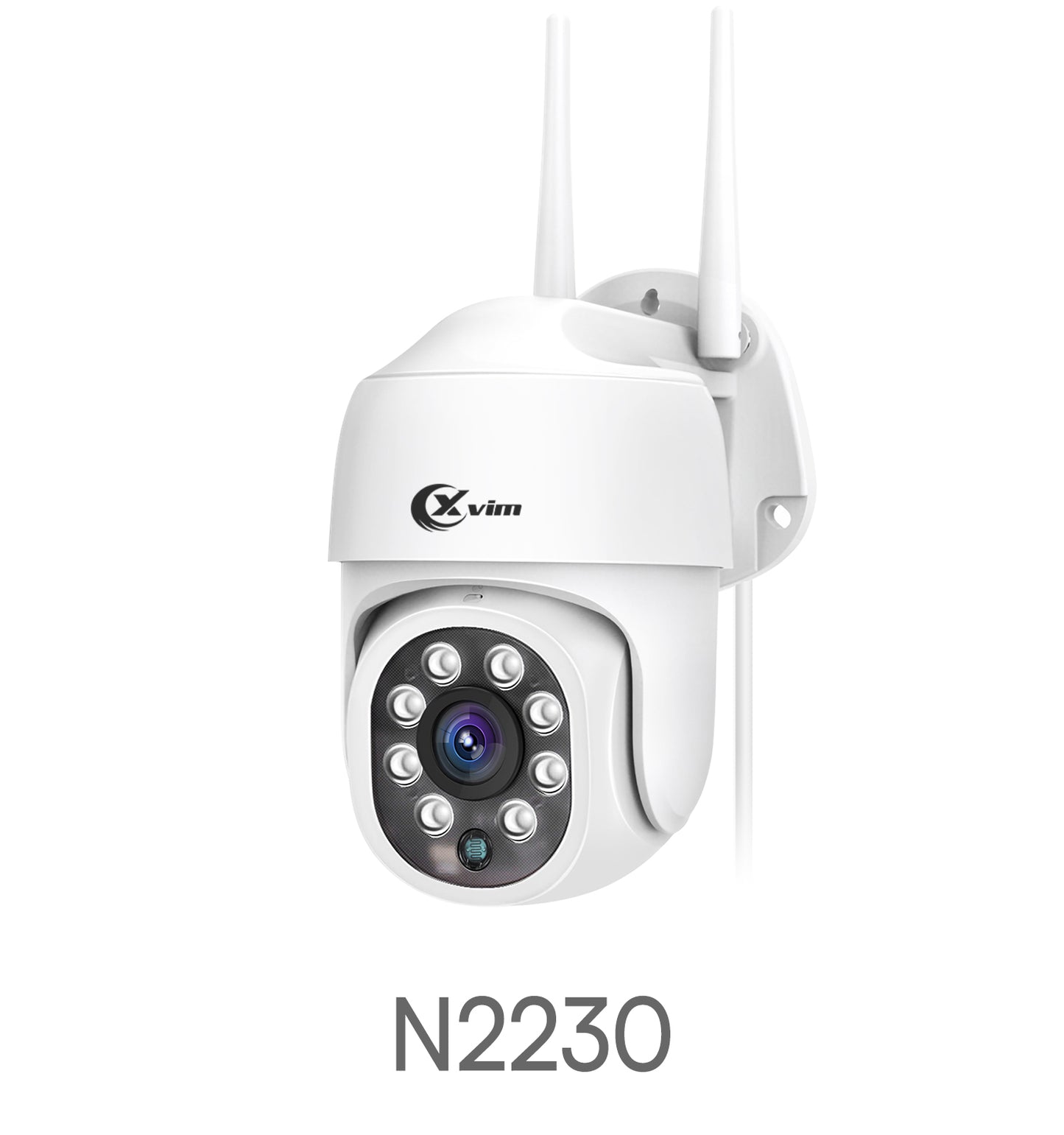

Getting Started with N2230 Outdoor Camera
If you have ordered the N2230 Outdoor camera or if you are interested in this camera model, and want to get some basic information about this product before putting it in use or placing the order, you may refer to the below introduction.
Product Overview
You may find detailed information about the structure and components of the camera here.
Product Overview
You can find detailed information about the camera construction and applicable WiFi here.
Before you connect the camera to WiFi, please make sure the WiFi meets the requirements:
WiFi Standard: IEEE 802.11b/g/n
Operating Frequency: 2.4Ghz
WiFi Security: WPA-PSK/WPA2-PSK
1. Download HoMeYe Pro APP
Search and download HoMeYe Pro in the APP Store or Google Play.

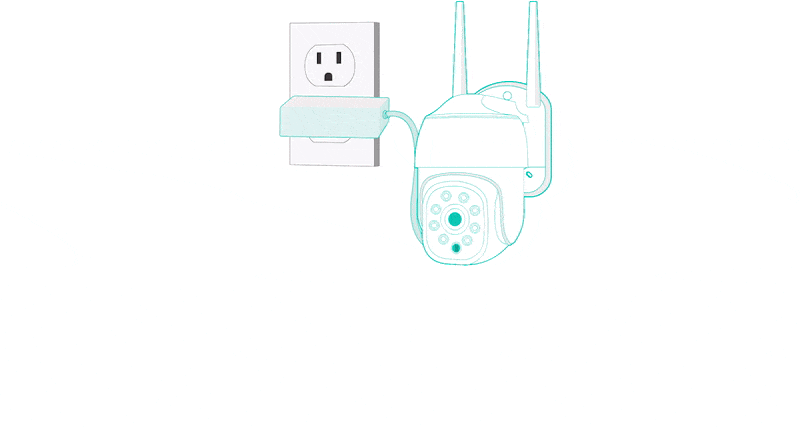

2. Connect the Camera to Power
Plug the camera into the power outlet after connecting the power cord and make sure the power outlet is working properly.
3. Restore Factory Setting
Insert the pin into the reset button on the camera, hold for ‘restore factory setting’
4. Add Device in APP
In the HoMeYe Pro APP, click Add Device and select Outdoor Camera
5. Connect to 2.4G WiFi
In the add device page, please connect the mobile phone WiFi to 2.4G WiFi first
6. Set the Device Password
After completing the camera matching, the APP will ask you to set a device password
1. Download HoMeYe Pro APP
Please scan the QR code to download “HoMeYe Pro” app, or search the app named
“HoMeYe Pro” on App Store or Google Play to download.

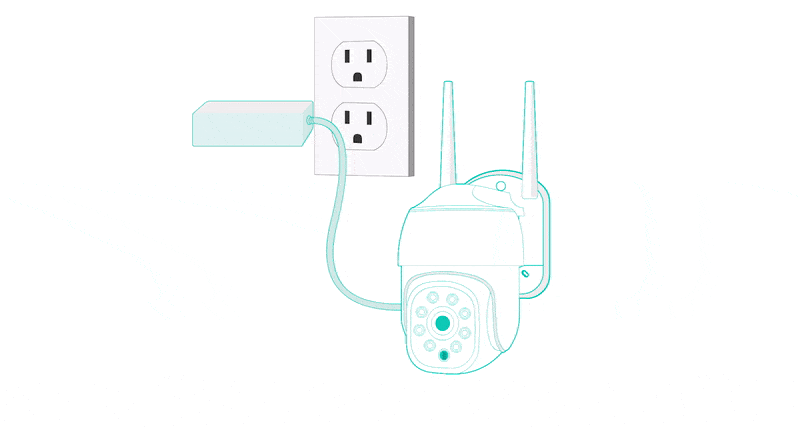

2. Connect the Camera to Power
Please plug the camera into the power outlet after connecting the power cord and make sure the power outlet is working properly.
3. Restore Factory Setting
Please open the soft cover at the bottom of the camera, then you will see the reset button and SD card slot. Please use the pin to press the reset button and hold for 5-10 seconds until you heard "Restore factory setting, please don't power off. Then the camera will rotate and prompt “System starting up, waiting to be configured > Connecting, please wait''. Then let the camera scan the QR code on your phone until you heard “Connected to router successfully”.

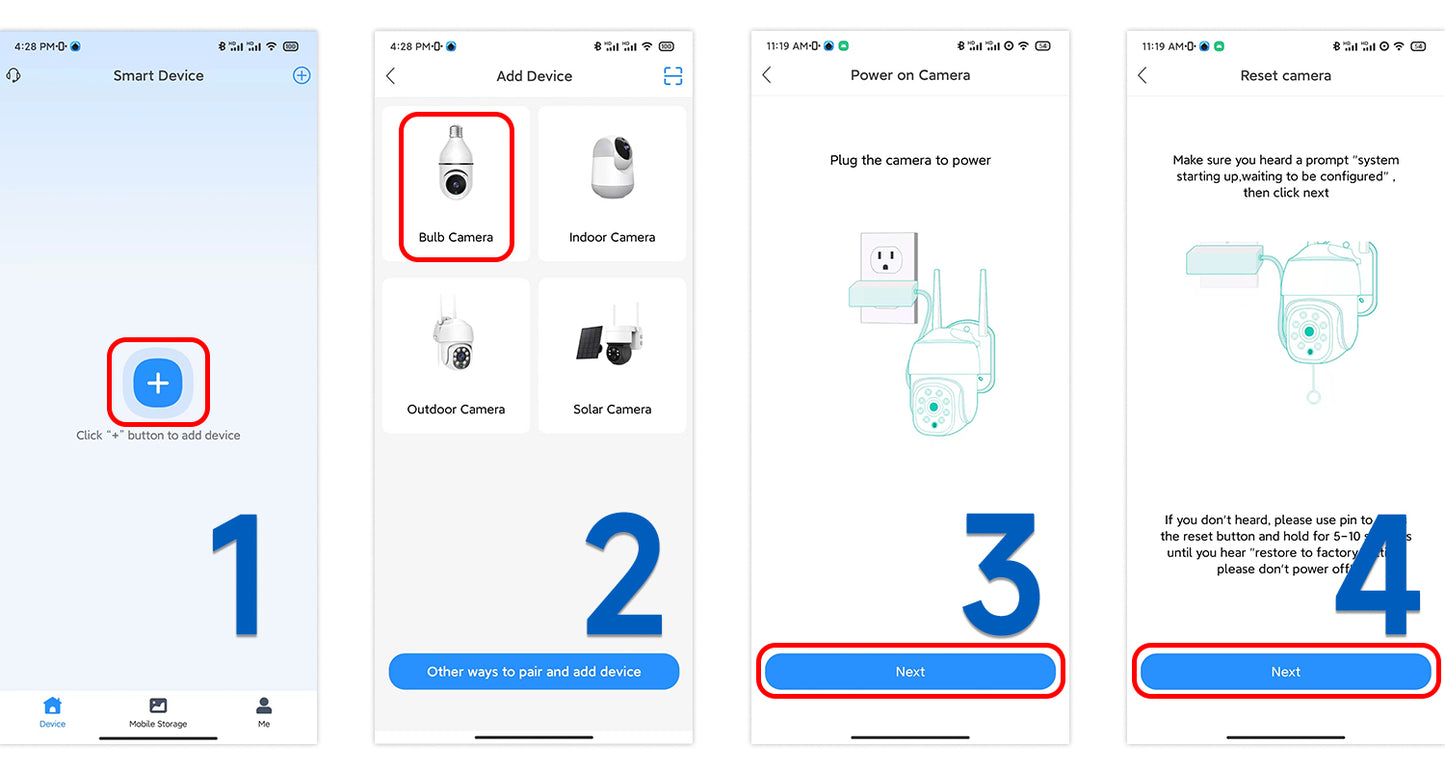

4. Add Device in APP
Please open “HoMeYe Pro” app, click “+” button to add the camera. Then click “Outdoor Camera” into “Power on Camera” page, click “Next” into “Reset Camera” page, click “Next” again into “Router Setting” page.

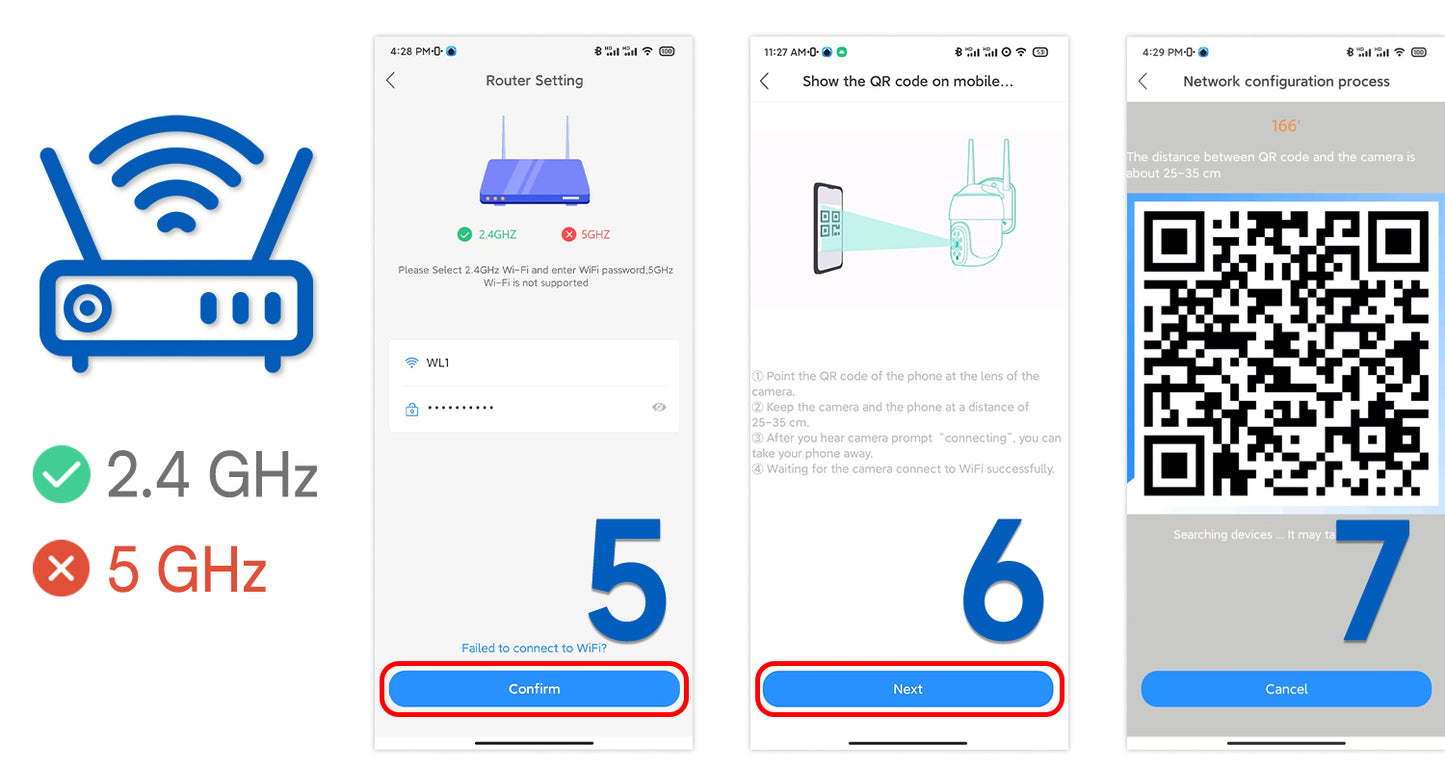

5. Connect to 2.4G WiFi
In “Router Setting” page of the app, please select 2.4GHz WiFi and enter WiFi password (Note:5GHz WiFi is not supported.), click “Confirm>Confirm” into “Show the QR Code on Mobile phone” page, click “Next” into “Network Configuration Process” page, then let the camera scan the QR code on your phone until you hear “Connected to router successfully”.
6. Set the Device Password
After connecting to WiFi successfully, “Set Password” page will pop up, please set a password for your camera, then click “Confirm” into “Set a Camera Name” page, please name the camera, then click “Save” into “Config Guide” page, select the record setting, then click “Next” into next page, open the “Alarm Push” button, click “Complete”, then the camera will be added successfully.
